Connect to a KVM host through an ssh tunnel and arbitrary port in Windows 11 and WSL 2

In Februari 2020 I wrote a Dutch blog post explaining how to manage KVM virtual machines in Windows 10 over ssh. Because the Windows version of virt-manager doesn’t support qemu+ssh, you need WSL 2 and an X Server (VcXsrv) in Windows to connect to.

Libvirt does not offer QEMU with ssh (qemu+ssh://) connection type support in the Windows virt-manager version. But luckily we now have WSL 2 in Windows 11.

Windows 11 and WSL 2 made this a whole lot easier with WSLg. On Microsoft Developer Blogs, Steve Pronovost wrote a pretty in-depth post outlining the WSLg Architecture. Basically, WSLg enables you to run Linux GUI apps on the Windows Subsystem for Linux.

Requirements to use virt-manager (qemu+ssh) in Windows 11

There are a few requirements you need to have. They’re pretty obvious:

1. Windows 11
2. WSLg
3. Virt-manager installed in WSL (sudo apt install virt-manager)
4. ssh key authentication set up

Retrieve SSH public key from Active Directory for SSH authentication

What made my tasks extra difficult is that the KVM host is only reachable by IPv6, which isn’t supported in WSL 2. Schematic, the traffic flow is like this:

flowchart TD

  subgraph WIN["Windows 11 host"]
    direction TB
    subgraph WSL["WSL 2 (Linux distro)"]
      direction TB
      VMGR["virt-manager (GUI)"]
      SSHC["ssh client (local port forward)"]
      LP["localhost:8822 (in WSL)"]
      VMGR --> LP --> SSHC
    end
  end

  subgraph NET["Network"]
    direction TB
    BAST["Bastion host (IPv4 reachable)"]
    KVM["KVM host kvm-3 (IPv6 only)"]
    LIBV["libvirtd / qemu-system"]
    KVM --> LIBV
  end

  %% Two-stage tunnel (annotated)
  SSHC -->|Stage 1: SSH over IPv4| BAST
  BAST -->|Stage 2: inside tunnel to kvm-3:22 over IPv6| KVM

  %% Commands / explanations as separate nodes (plugin-friendly)
  CMD1["Stage 1 tunnel endpoint: WSL opens SSH to bastion (IPv4)"]
  CMD2["Stage 2 hop: bastion reaches kvm-3 over IPv6 and forwards port 22"]
  CMD3["virt-manager uses qemu+ssh via localhost:8822 to reach libvirt on kvm-3"]

  SSHC -. "explains" .-> CMD1
  BAST -. "explains" .-> CMD2
  VMGR -. "explains" .-> CMD3

  EX1["ssh -L 8822:kvm-3:22 bastion -N"]
  EX2["qemu+ssh via localhost:8822 (system)"]

  CMD1 -. "example" .-> EX1
  CMD3 -. "example" .-> EX2

From WSL 2 in Windows 11, I need to connect to my bastion host over IPv4, and from there I need to connect to the KVM host over IPv6. Since WSL 2 doesn’t support IPv6, I create a ssh tunnel to the bastion host.

In WSL, execute:

ssh -L 8822:kvm-3:22 bastion.example.com -l username -N

Once the tunnel is established, I can use that to connect virt-manager through to kvm-3 using localhost and the arbitrary port 8822:

virt-manager -c 'qemu+ssh://username@localhost:8822/system'

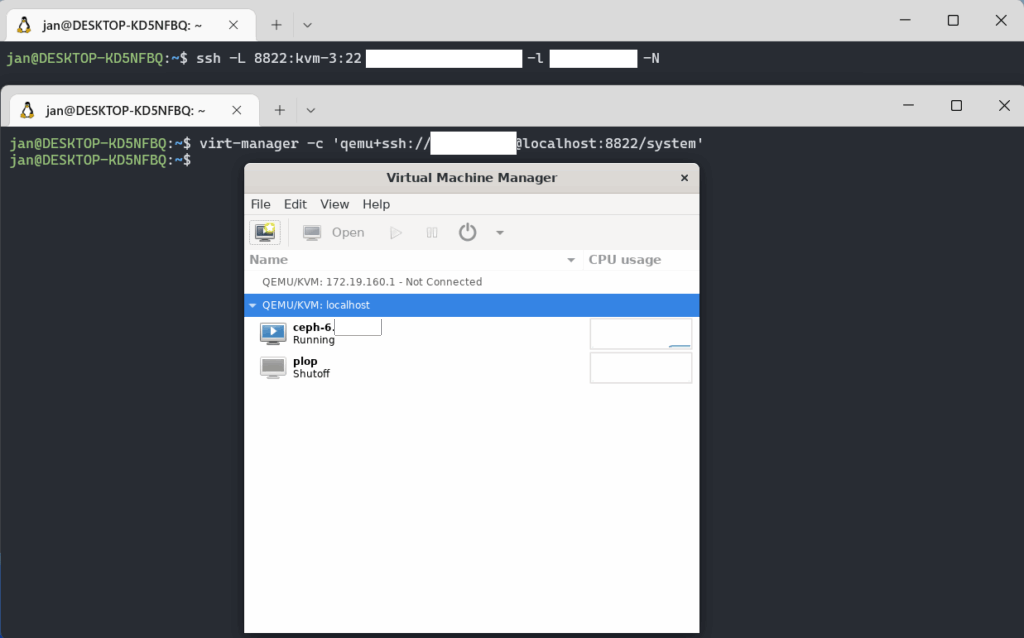

If all goes well, virt-manager connects and opens its screen (I munged the info in the following screenshot a bit):

As you can see, this exercise is a lot easier than it was in Windows 10 using WSL 2 virt-manager, and VcXsrv in Windows. Of course, you can skip the ssh tunneling part if your KVM host is directly reachable.
